Water Tanks

Thanks to our great team at MR Maquinaria, we are please to be able to offer our exclusive Water Tanks with our Franchise design, to our clients in the US. For more than a decade, our family has tried to create the best possible Water Tank with only the best design and the best quality.

About the project

Measurements

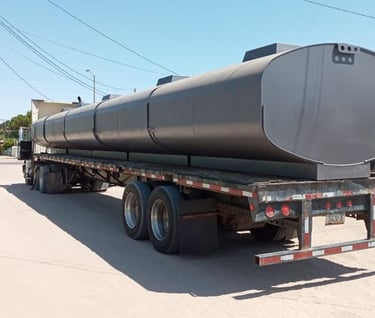

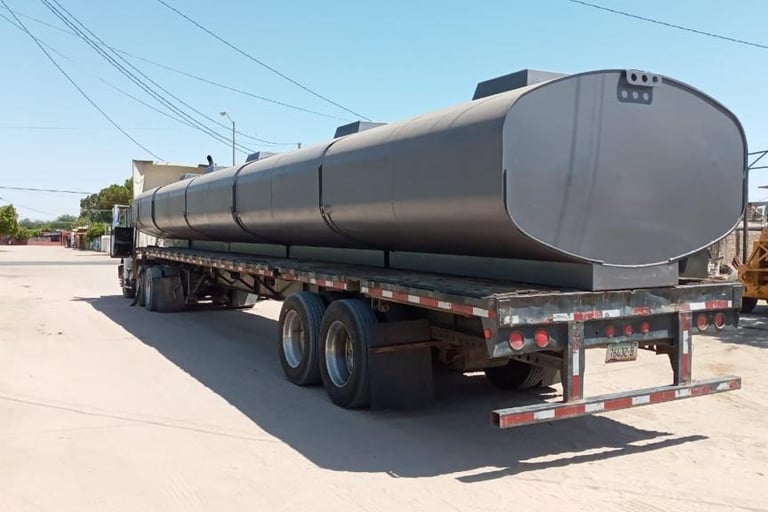

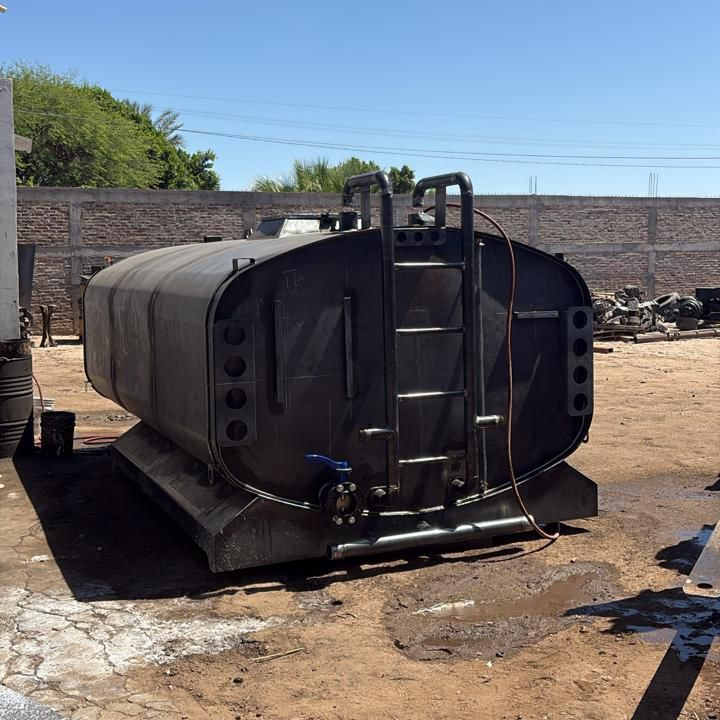

Generally our orders consist of Carbon Steel 3/16” tanks and/or Stainless Steel Tanks. In case of requiring a different type of material on our tank we would gladly consider it and proceed as a custom order.

Please note, mostly our tanks are not provided out-the-door. Our process takes between a week - two weeks to complete. Half the price is required as anticipation to process an order.

The lid on our tanks measure:

2000 gallon 96” width 55” height 10 feet long tank

2500 gallon 96” width 60” height 10 feet long tank

4000 gallon 96” width 60” height 15 feet long tank

Baffles:

2000 and 2500 gallon tanks contain 1 inside baffle.

4000 gallon tanks contain 2 inside baffles.

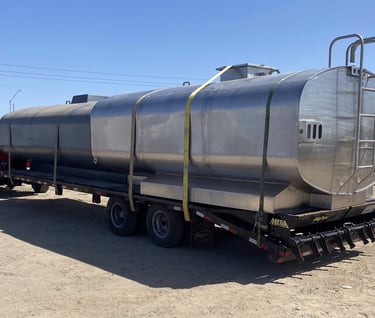

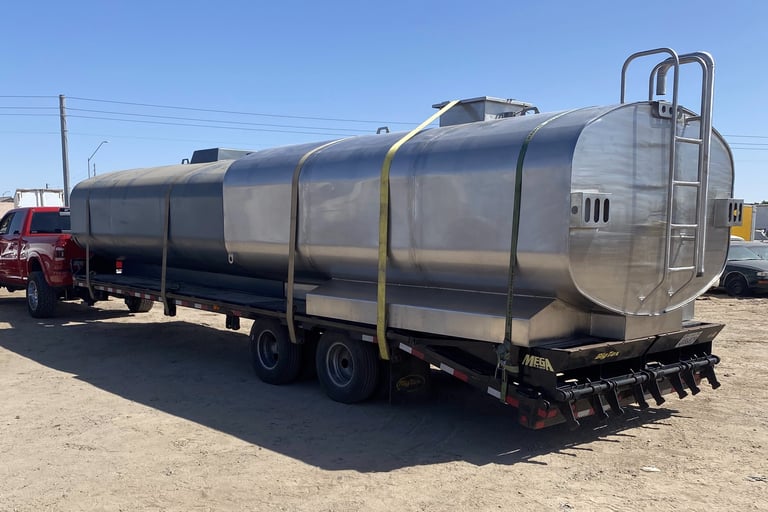

Stainless Steel:

(CALFIRE)

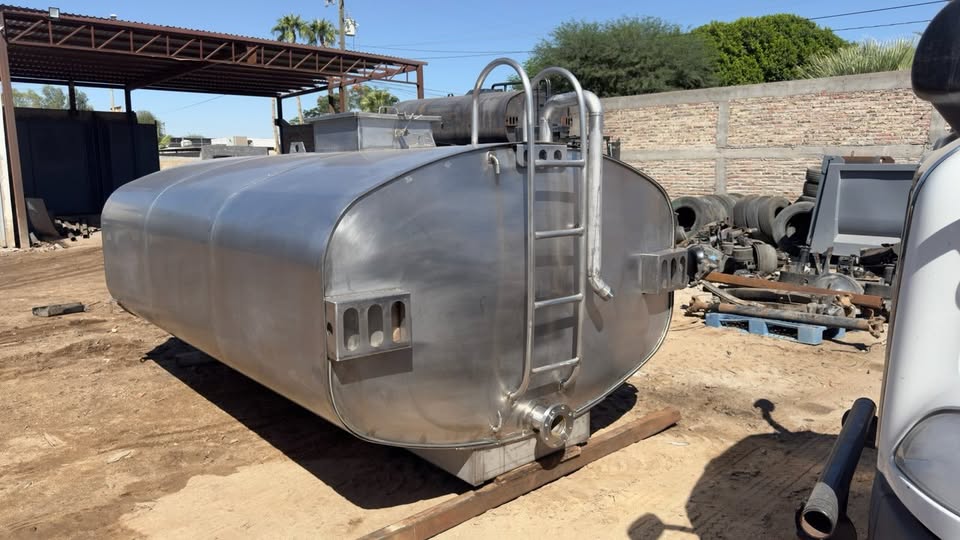

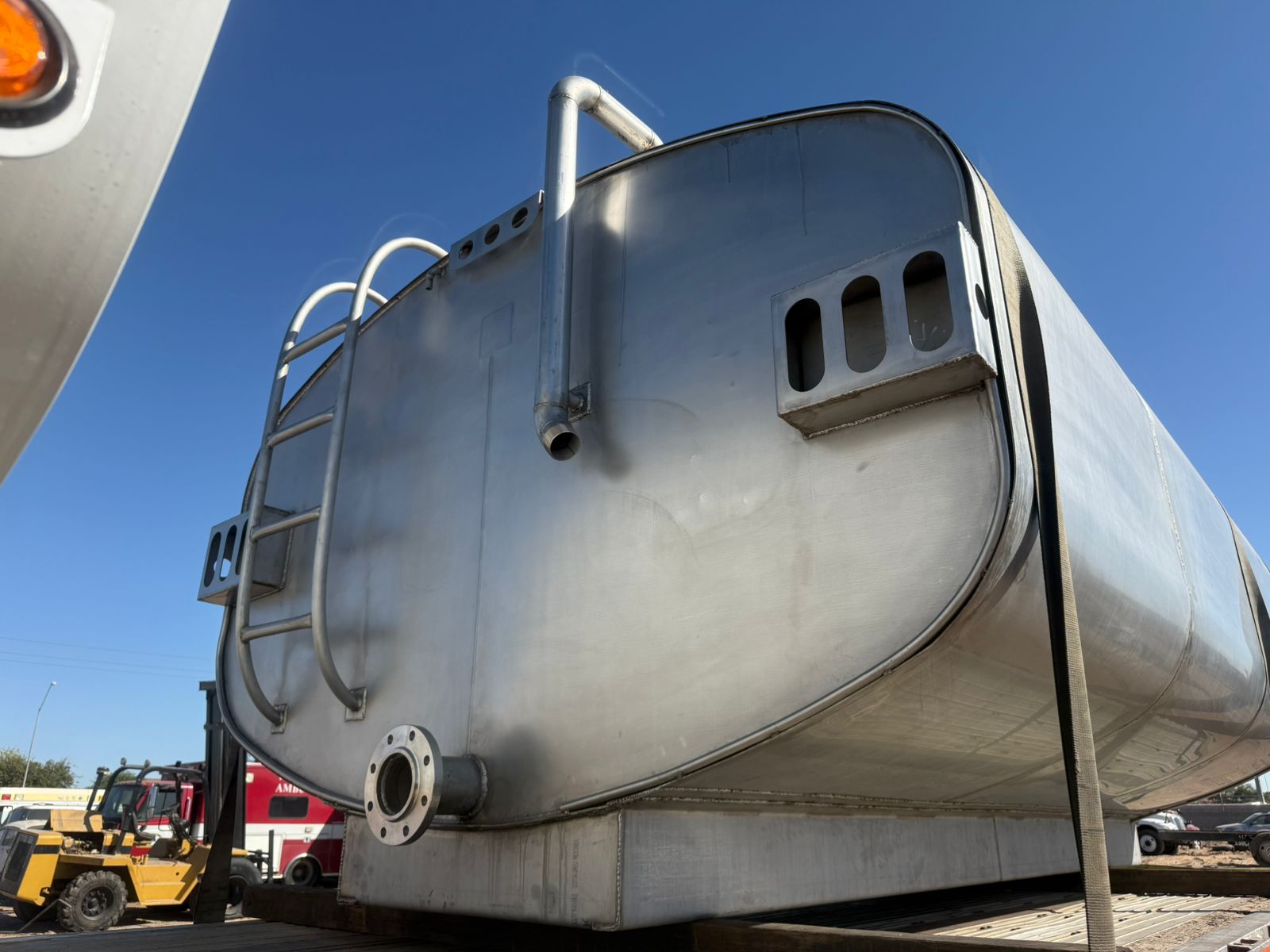

Our stainless steel tanks have 3/16” (4.76 mm) lids, the body of the tank would be Caliber 10 (3.42 mm). The water tanks would have 1 vertical baffle in the middle (caliber 10 3.42 mm), A 4 inch tube diameter and 12.70 mm thickness. It also includes 1 transversal baffle below the 4 inch tube that goes from lid to lid, that baffle being caliber 10 (3.42 mm). Tank will also include the ladder, 2 inch pipe and backlights. Everything stainless steel.
